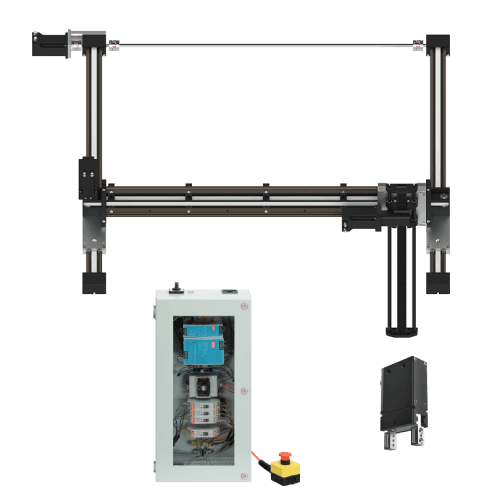

Linear robot Education Bundle
The gantries from igus enable multi-dimensional movements and are used in a wide variety of industrial sectors, thereby providing a comprehensive insight into Industry 4.0 production.
Thanks to our integrated software and the gantry configurator, you can configure your room gantry exactly as you need it.
Measuring and testing automation, handling and assembly technology, identification in microelectronics and medical technology, or tasks in small parts handling are brought closer vividly and presented directly in an easy-to-understand manner.
In addition, igus offers its own learning page, which provides teaching material tailored to this robot.
Highlights
LCA Learning
didaktisches Lernmaterial inklusive
Auf der Seite von igus® finden Sie auf die Roboter zugeschnittene Lerninhalte. Power-Point Präsentationen, Arbeitsblätter, Videos und Seminare helfen dabei, das Wissen über Robotik und Low Cost Automation zu vertiefen.
Die LCA Learning Seite steht Ihnen dabei vollkommen kostenlos und uneingeschränkt zur Verfügung.
Fit to your needs
Portal configurator
Customize the linear robot to your needs! Simply enter your desired dimensions. You can then download the CAD file and receive a summary by email.
Free Download
Download now and try it out in advance
Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)
Includes igus® Robot Control
Modular control and Software
This set enables you to control the robolink® robot arm. With the corresponding software, you can programme and move the robot via a graphical user interface. Main features:
Modular, control system based on top-hat (DIN) rail, easy to extend
Smooth motion with 1/256 microstepping
Energy saving operation with adaptive current control: Trinamics StallGuard2 and CoolStep Technologies
Intuitive control and programming environment with interactive 3D user interface
Programming commands like Joint, Linear, If-Then-Else, DigitalOut, Loop etc.
Interface to remote computer via TCP/IP
ROS packages are available
Control cabinet
Components
Room portal robot | DLE-RG-0003 | Working area 800 x 800 x 500 mm
by igus®Part No.: RBTX-IGUS-0074Room Gantry Robot for Precise Automation in Medium-Sized Workspaces
The drylin® room gantry robot DLE-RG-0003 offers ±0.8 mm accuracy and a workspace of 800 × 800 × 500 mm. With a max payload of 5 kg, 0.5 m/s speed, and up to 20 picks/min, it’s ideal for precise and repeatable motion tasks.
Controlled via igus® Robot Control or Dryve D1 – supporting Modbus TCP/IP, CANopen, ROS, digital I/Os, and LabVIEW. The intuitive 3D interface enables easy programming and seamless integration into existing automation systems.
Recommended for pick & place, lab automation, packaging, and light assembly. Perfect for SMEs, research labs, and industrial users focused on efficiency and low maintenance.
GEP2010IO-00-B Parallel Gripper - Electric
by ZIMMER GROUP GmbHPart No.: RBTX-ZIM-0012Largest stroke in small installation space Do you require a large stroke, due to the fact that you are operating either a form fit gripper or a large range of parts but the installation space and the load capacity of your application is limited? Then this gripper is perfect for you!
The simplest activation It is your choice whether you want to control the gripper by means of I/O ports—like a valve—or if you prefer the version with IO-Link. Both have this in common: they are easy to integrate into your control system.
Positionability via IO-Link Allows you to position the gripper jaws of the IL-03 and IL-43 variant. In this way, the stroke can be flexibly adapted to the workpiece, which saves time in the process and prevents interfering contours.
Low cost solutions built with RBTX
